| الاسم التجاري: | Greenson |
| الـ MOQ: | 1 |
| السعر: | $700000-$800000 |
| شروط الدفع: | الاعتماد المستندي، تي/تي |

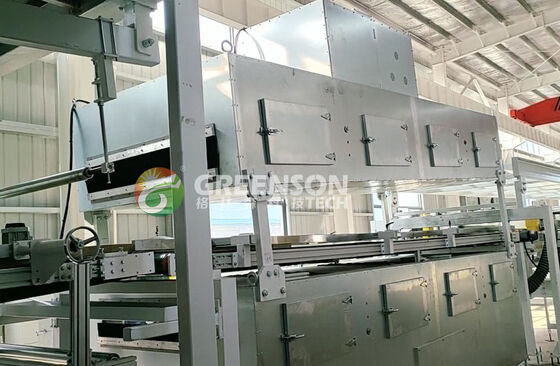

This production line is engineered for the continuous manufacturing of rock wool (mineral wool) sandwich panels, primarily utilized in industrial construction requiring stringent fire-safety ratings. The system integrates decoiling, cold-roll forming, rock wool strip flipping, automated adhesive application, and high-temperature curing to ensure structural integrity and thermal consistency across large-scale production runs.
| Material Type | Color steel sheet; Galvanized sheet; Aluminum sheet |
|---|---|
| Material Thickness | 0.3-0.8 mm |
| Material Width | ≤1250 mm |
| Suitable Panel Length | 2000-18000 mm |
| Suitable Panel Width | 500-1200 mm |
| Suitable Panel Thickness | 30-250 mm (excluding corrugation height) |
| Production Speed | 3-15 m/min (Adjustable) |
| Valid Length of Double Belt Conveyor | 12000-42000 mm |
| Work Pressure on Pouring Foam | 150-200 Bar |
| Total Power | 660 kW / 300 kW |
| Total Dimensions | 130000 × 15000 × 6000 mm (Length × Width × Height) |
