Fully Automatic Rock Wool Production Line for 10000-50000tons/year with 50-200mm Thickness Mineral Wool Board Making

Fully Automatic Rock Wool Production Line for 10000-50000tons/year with 50-200mm Thickness Mineral Wool Board Making

الاسم التجاري:	Greenson
الـ MOQ:	1
السعر:	US $2000000-4000000
شروط الدفع:	الاعتماد المستندي، تي/تي

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

هيبي

اسم المنتج:

آلات لمواد البناء آلة تصنيع البلوك الصخري الأوتوماتيكية بالكامل من صفائح الصوف الصخري

الكلمة الرئيسية:

خط إنتاج الصوف الحجري. خط إنتاج ألواح الصوف الصخري

القدرة الإنتاجية:

10000-50000TONS/YEAR

سماكة:

50-200mm

كثافة:

100-200 كجم/م 3

العملية الرئيسية:

الخلط ، تشكيل ، قطع الماء ، التجفيف

طول:

1200-2400 مم

عرض:

600-1200 مم

إبراز:

Fully Automatic Rock Wool Production Line,10000-50000tons/year Mineral Wool Board Production Line,50-200mm Thickness Rock Wool Board Making Machine

10000-50000tons/year Mineral Wool Board Production Line

50-200mm Thickness Rock Wool Board Making Machine

وصف المنتج

Fully Automatic Rock Wool Sheet & Block Making Machine

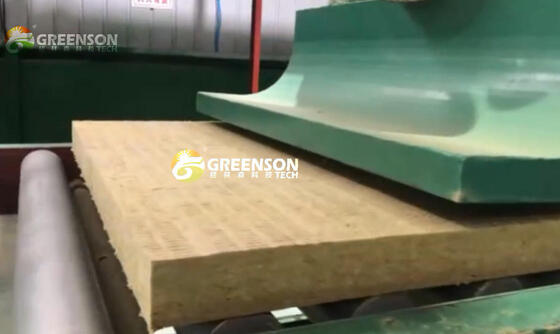

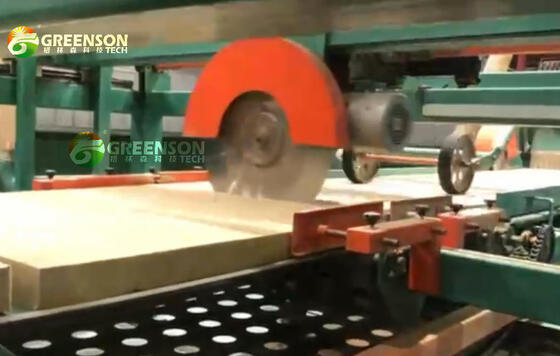

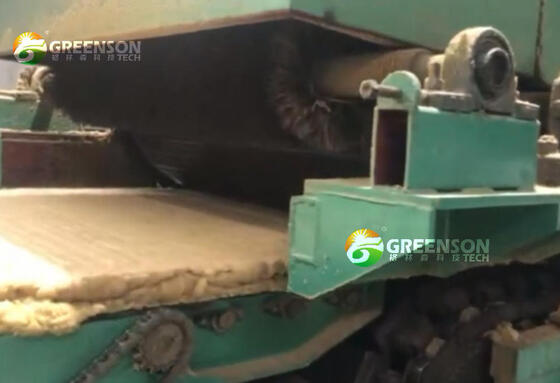

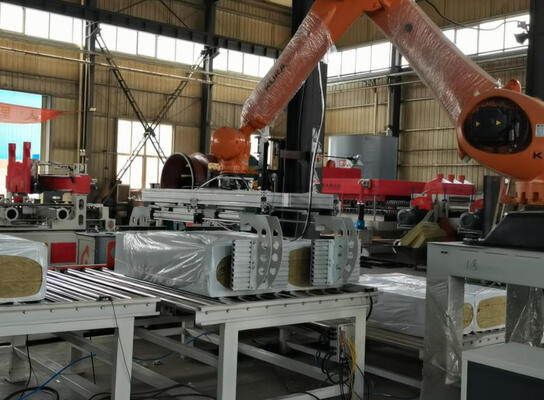

The SUNTHERM Rock Wool Production Line transforms raw materials including basalt, dolomite, and binders into high-quality rock wool products. The automated process begins with material loading via elevator into the hopper, followed by melting in the furnace to create lava flow. This molten material is then cooled and spun into fibers by the centrifuge, with binders added during the spraying process. Fibers are drawn down to the mesh belt by negative pressure wind to form the original felt, which is then transported through pendulum cloth machines and curing furnaces. The final products are precisely cut both longitudinally and transversely before packaging and storage.

Product Specifications

Application	Manufacture of Rock Wool Blanket and Rock Wool Board
Annual Capacity	10,000 to 80,000 tons/year (increments of 10,000 tons)
Raw Materials	Basalt, dolomite, binders, and related materials
Energy Supply Systems	• Raw coal energy supply system • Power energy supply system • Natural gas energy supply system

Frequently Asked Questions

What payment terms do you prefer?

T/T, L/C, West Union, Cash, and other standard payment methods.

How long is the validity of quotation?

Quotations are generally valid for one month from the date of issue. Prices may be adjusted based on raw material cost fluctuations and market changes.

Do you provide OEM/ODM Service?

Yes, we offer custom manufacturing services to meet diverse global client requirements and budgets. Please provide necessary specifications for customized solutions.

Do you offer a guarantee?

Yes, we provide a comprehensive one-year product guarantee along with after-sales service support and technical assistance.

What is your Minimum Order Quantity (MOQ)?

1 Set
