200T Pressure High Automatic Perforating Machine for Max 20mm Thickness Gypsum Board Punching

200T Pressure High Automatic Perforating Machine for Max 20mm Thickness Gypsum Board Punching

الاسم التجاري: LVJOE
رقم الطراز: LV-CK01
الـ MOQ: 1 مجموعة
السعر: US $20000-80000
القدرة على التوريد: 50 مجموعة في السنة
معلومات مفصلة
مكان المنشأ:
الصين
إصدار الشهادات:
ISO CE
اسم المنتج:
معدات تثقيب الألواح العازلة للصوت آلة تثقيب الألواح الجصية عالية السرعة
الكلمة الرئيسية:
آلة ثقب ألواح الجبس للإنتاج المستمر
ضغط:
80t ، 160t ، 200t
الاستخدام:
لوحة الجبس ، MDF ، HPL ، ثقب لوحة الأسمنت الألياف
الثقوب:
جولة ، مربع
المستوى التلقائي:
عالية أوتوماتيكية
سماكة:
الأعلى. 20mm
ضمان:
1 سنة
طلب:
السقف الداخلي والتقسيم
ميزة:
شائع
تفاصيل التغليف:
فيلم PE ملفوف
القدرة على العرض:
50 مجموعة في السنة
وصف المنتج

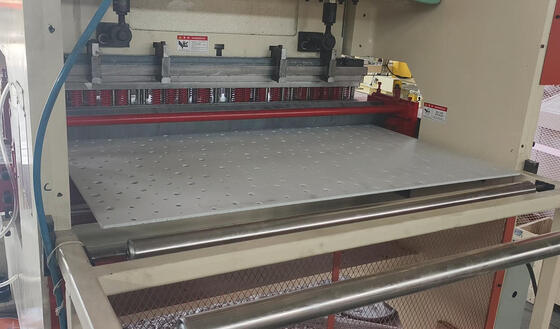

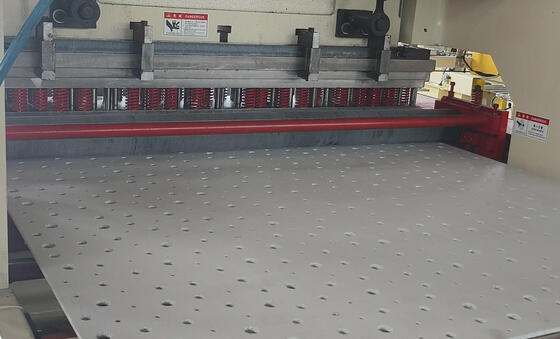

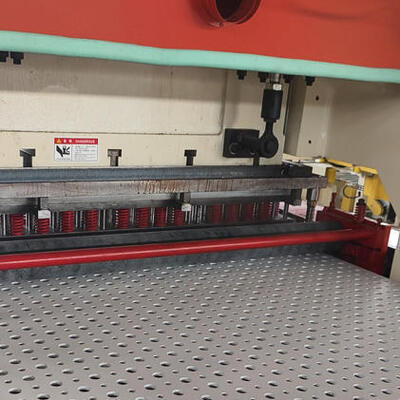

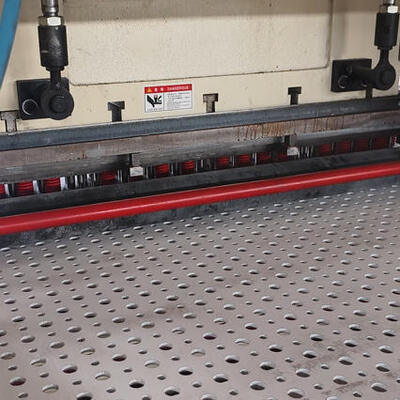

Sound Insulation Board Perforating Equipment High Speed Plaster Board Punch Machine
High-performance gypsum board drilling equipment designed for precision perforation in various building materials.
Product Specifications
Pressure 80T, 160T, 200T
Usage Gypsum Board, MDF, HPL, Fiber cement board perforation
Holes Round, Square
Automatic Level High automatic
Thickness Max. 20mm
Technical Specifications
  • Punching pressure: 200 ton
  • Stroke: 30 mm
  • Max mold height closed: 260mm
  • Number of strokes: 50 times/minute
  • Slide surface: 210*1100mm
  • Working table: 300*1670mm
  • Spacing of both pole: 1350mm (load the max board width 1220mm)
  • Power of main motor: 22kw
  • Power of servo motor: 2.6kw (brand: Zhejiang yifeng)
  • Feeding accuracy: ±1mm
  • Maximum feeding rate: 100mm
  • Maximum feeding thickness: 20mm
  • Gross weight of machine: 11000kg
  • Overall dimension: 2300*1500*2300(H*L*W)
Applications
This perforation machine is designed for creating holes in various materials including gypsum ceiling board, MgO board, MDF, HPL, Fiber cement board, and metal sheets. Custom hole shapes are available to meet specific requirements. Comprehensive operational training is provided.
